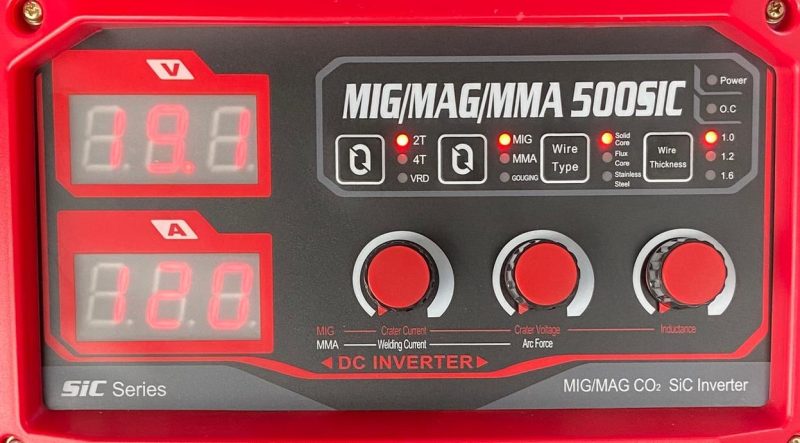

MIG 500 SIC

MIG 500 SIC

Features :-

  •  Adopt silicon carbide technology, light weight and small size
  •  With manual arc welding, gas shielded welding, gouging functions
  • With VRD anti-electric shock function, can be used with generator
  • 100% duty cycle, long-term welding without protection
  • Built-in dual nano transformers, dual reactors, better welding performance
  • Suitable for welding of carbon steel, low alloy steel, stainless steel and other
  • metal materials

Technical Parameters:-

MODEL MIG 500 SIC
Input Voltage  3 PH 415V±15%
Input current 40 A
Rated input current 26 KVA
CO2 Gas flow range 15*20L/min
Welding current adjustment range 30-500A
Output current range 20 – 500A
Duty cycle 100%
Full load efficiency >88%
Applicable wire range 1.0-1.6mm
Non-load output voltage 75V
Dimension 507 x 276 x 457mm
Weight 23.6 Kg
