OVERVIEW

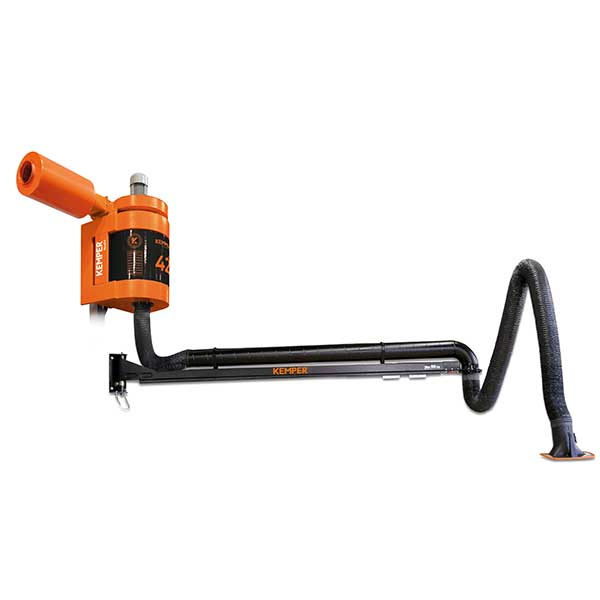

The MaxiFil Stationary is a fixed-position welding fume extraction system designed to provide reliable source capture for regular welding applications. Suitable for all welding materials, including high-alloy stainless steel, the system effectively removes welding fumes and airborne particles directly at the source, creating a safer and cleaner working environment. With its stationary design and high-performance filtration, it is an ideal solution for dedicated welding workstations in fabrication shops, manufacturing plants, and technical training centres.

KEY FEATURES

• W3/IFA-certified for stainless steel welding applications
• Stationary extraction system for dedicated welding workstations
• Safe Change Filter system for clean and safe filter replacement
• Optional Automatic Start-Stop function
• Optimized extraction hood for improved fume capture
• Integrated filter monitoring system
• Quiet operation with built-in silencer
• User-friendly control box for simple operation
• Compatible with flexible or rigid extraction arms from 2 m to 7 m

TECHNICAL SPEC

• Extraction capacity: 1,000 m³/h
• Maximum fan performance: 3,000 m³/h
• Filter efficiency: >99.5%
• Filter class: E12
• Filter surface area: 42 m²
• Motor power: 1.5 kW
• Noise level: 72 dB(A)
• 150 mm extraction arm diameter
• Available with flexible or rigid metal extraction arms (2–7 m)

BENEFITS

• Captures welding fumes directly at the source for maximum operator protection
• Certified for hazardous welding fumes, including stainless steel applications
• Reduces maintenance downtime with safe and easy filter replacement
• Improves extraction efficiency through optimized hood design
• Enhances workplace safety with filter monitoring and reliable operation
• Ideal for permanent welding stations requiring consistent, high-performance fume extraction
