OVERVIEW

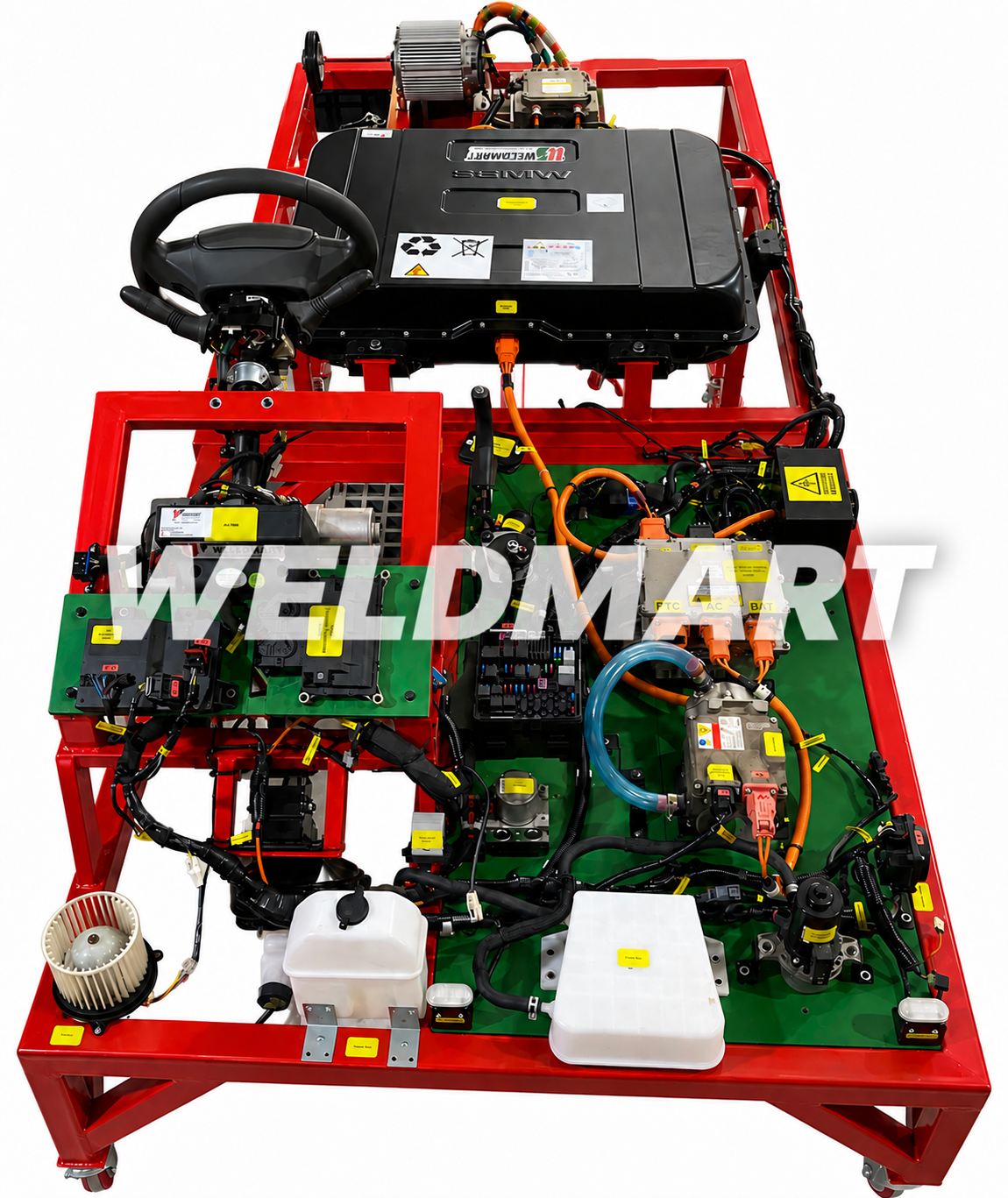

This Weldmart  20 kW EV Training Bench is a purpose-built educational platform created by retaining major original EV powertrain and vehicle-control components and mounting them on an open steel training frame. The open architecture allows instructors and students to visually identify, measure, diagnose and demonstrate the interaction between the high-voltage battery, battery management system, vehicle control electronics, inverter/motor controller, traction motor, charging/distribution equipment and selected vehicle auxiliaries.

TRAINING APPLICATIONS

• EV Component Identification
• HV Safety Inspection
• Diagnostic Scanning
• BMS Data Analysis
• DC Bus Measurement
• Insulation Resistance
• Oscilloscope Study
• Thermal Inspection
• Motor Control
• Interlock Fault Finding

WHY CHOOSE WELDMART EV TRAINING BENCH?

• Real EV Components
  Actual automotive EV powertrain components.
• Hands-on Learning
  Designed for practical component identification, measurement and diagnostics.
• Industry Relevant Training
  Suitable for TVET, universities and technician upskilling.
• Open Training Platform
  Major systems are exposed and labelled for easier teaching and inspection.

Download Catalogue

Video on this EV Training Bench: Weldmart EV Training Bench
